Key Components of SCADA Systems for the Modern Water Industry

To understand how SCADA operates comprehensively, it is essential to explore the key components that form its system architecture. This article outlines the essential hardware, software, sensors, and architectural layers commonly used in modern water installations.

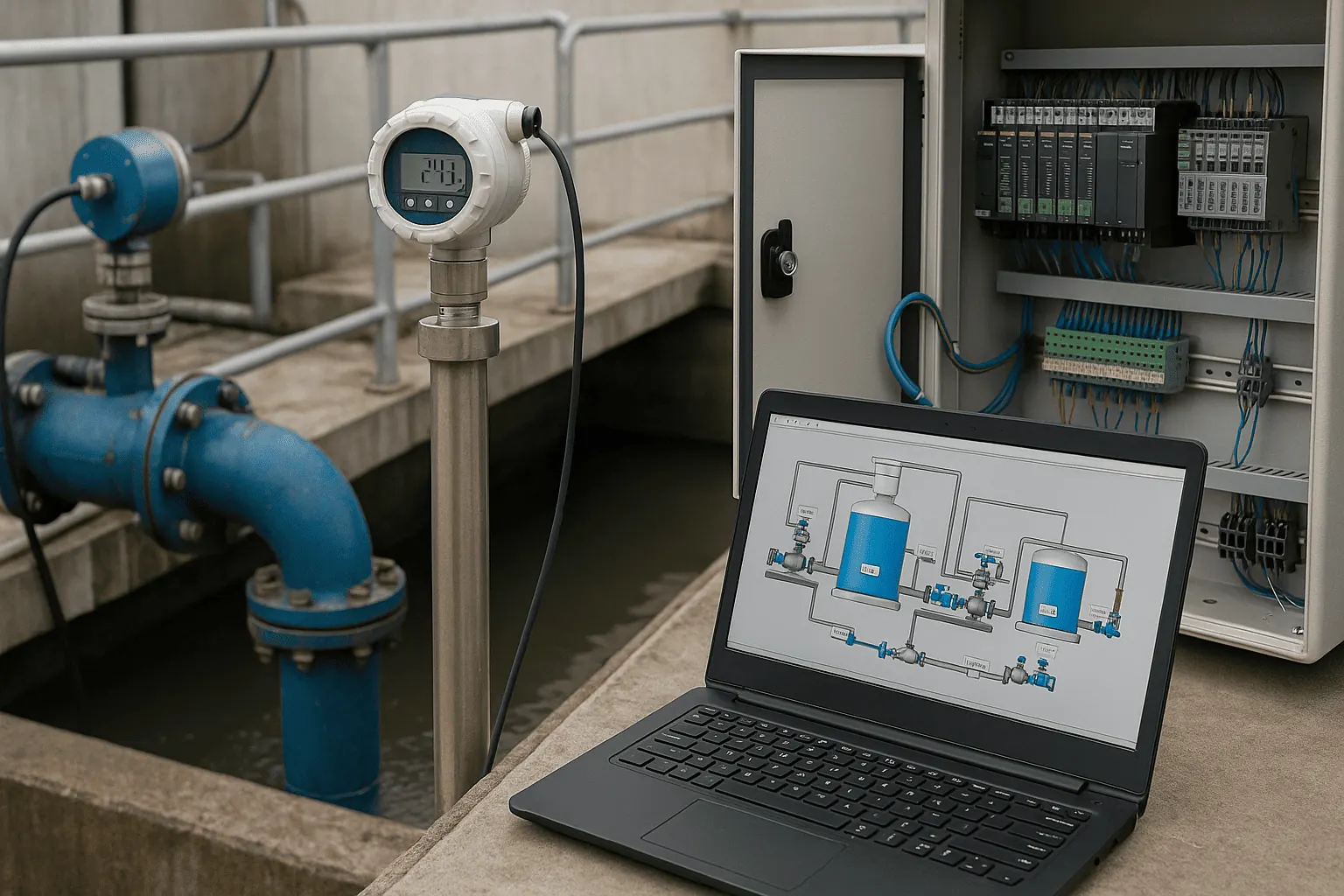

1. Sensors and Actuators: The Frontline of Data Acquisition

The most front-facing elements in a SCADA system are the sensors, responsible for collecting real-time process data, and actuators, which execute system commands.

Common Sensor Types in Water Systems:

• Flowmeter: Measures the flow rate in pipeline networks
• Level Sensor: Monitors water levels in tanks or reservoirs
• Pressure Sensor: Detects pressure levels in pumps and pipelines
• pH and Turbidity Sensors: Measure water quality, especially in drinking and wastewater treatment
• Conductivity and ORP Sensors: Used in chemical treatment and disinfection processes

Actuators:

• Electric or Pneumatic Valves: Automatically open/close water flow
• VFD-Controlled Pumps: Adjust flow speed based on real-time demand

2. PLC and RTU: The Local Control Brain

PLC (Programmable Logic Controller)

The primary control unit that processes signals from sensors and executes pre-programmed logic. PLCs are known for their speed, reliability, and customizability.

RTU (Remote Terminal Unit)

Functions similarly to PLCs but is designed for remote sites and transmits data to the control center via wireless or satellite communication. RTUs are commonly used at remote intake points or along distribution pipelines.

3. Communication Systems: The Connectivity Backbone

All SCADA components are connected through standardized communication protocols and media:

• Protocols: Modbus RTU/TCP, Profibus, Ethernet/IP, OPC UA
• Media: Fiber optic, RS-485 cables, or wireless (radio, GSM/4G, Wi-Fi) depending on location and system requirements

The choice of communication system must consider data speed, distance, and environmental resilience.

4. HMI and SCADA Software: The Visual and Analytical Core

HMI (Human Machine Interface)

The visual interface—typically on touchscreens or desktop monitors—used by operators to view system status, alarms, trends, and reports.

SCADA Software

Manages the core functionality of the system:

• Collects real-time data from PLCs and RTUs
• Stores historical data in a historian database
• Displays interactive dashboards
• Configures alarms, notifications, and user access control
• Integrates with ERP, GIS, or cloud-based analytics platforms

Popular SCADA software platforms include: Wonderware, Ignition, Siemens WinCC, GE iFIX, Schneider EcoStruxure.

5. Modern SCADA Architecture

Modern SCADA systems are typically structured into three layers:

🧠 Field Level (Control Layer)

Comprises sensors, actuators, and PLCs/RTUs. This is where data acquisition and physical actions occur.

🖥️ Supervisory Level (Control Room)

Includes SCADA servers, HMI software, and operator workstations. This is the central hub for monitoring, reporting, and system control.

☁️ Enterprise / Cloud Level

Connects SCADA with enterprise systems or cloud platforms for advanced analytics (e.g., predictive maintenance, energy monitoring, regulatory reporting).

Uniting Components for a Resilient Water System

A robust SCADA system is not just about having the latest technology, but about harmonious integration between components. Accurate sensors, reliable PLCs, stable connectivity, and intuitive user interfaces are critical to successful, automation-driven water management.

Amid rising pressures for operational efficiency and sustainability, SCADA forms the technological backbone to ensure processes are efficient, transparent, and dependable.
